EQUAL

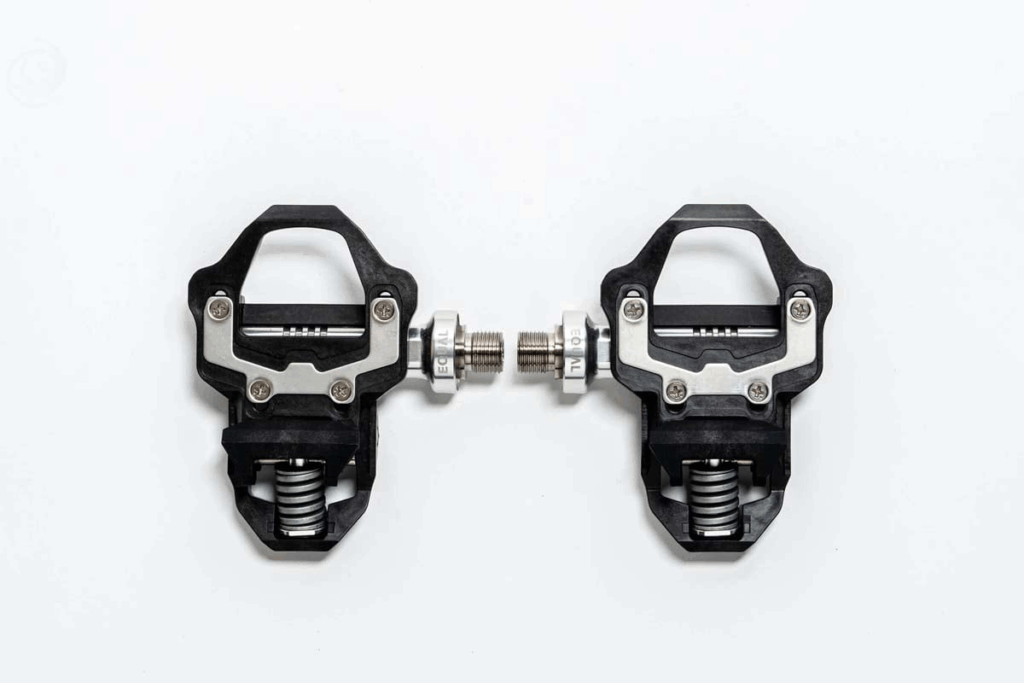

Multi-Adjustable ROAD Pedals
We created a clipless pedal
with an extensive range of adjustments.
It not only helps reduce joint pain,
but also lets you fine-tune your ideal riding position
and discover new possibilities along the way.
A pedal that makes you
look forward to your next ride.
A New Level of Adjustability
Whether chronic pain or past injuries have kept you away from cycling, or you've never been able to
perfect your riding position...
The goal of the EQUAL pedal is to provide a solution for riders facing those challenges.
To help solve a wide range of fit and comfort issues,
we incorporated every adjustment mechanism we could into a single pedal.
Discover Your Perfect Setup
Unlike conventional clipless pedals, every adjustment works independently, giving you complete freedom to fine-tune your fit.
Experiment with different combinations and discover what truly feels right for your body and riding style.
You'll find a setup that feels like it was made just for you.
And you'll enjoy every ride even more.
Features
Fore-Aft Adjustment
By repositioning the spindle unit, you can choose the pedal position from three fore-aft settings: +4 mm, 0 mm, or -4 mm.
Rotational Adjustment
By repositioning the Claw, you can adjust the cleat angle by ±2°.
Q-Factor Adjustment
By repositioning the spindle unit, you can choose from three Q-factor settings: 48 mm, 52 mm, or 56 mm.
Stack Height Adjustment
Adjust the spacers to fine-tune stack height in 1 mm increments.
It also accommodates riders with different leg lengths.
Cant Angle Adjustment
Using the same method as stack height adjustment, the cant angle can also be adjusted in 0.5° increments.
Low-Force Release Mechanism
The cleat retention system has been carefully engineered to provide a secure hold while riding, yet releases smoothly with minimal effort thanks to a specially designed spring. Ideal for both new and experienced clipless pedal riders.
Outstanding Performance and Everyday Practicality
Outstanding Performance and Everyday Practicality Core pedal performance is just as impressive. A large-diameter 15 mm hollow spindle with exceptional stiffness delivers class-leading power transfer, while three bearings on each side provide outstanding stability and smooth rotation.
Compatible with Shimano cleats, replacement cleats are easy to find wherever you ride.
Every Part Is Serviceable and Replaceable
Designed for years of reliable use, the pedals can be easily serviced by the rider without special tools or complicated procedures.
Wear items such as the pedal body and Claw are also available separately, keeping your pedals performing at their best for years to come.
Learn More About the Multi-Adjustable Road Pedal
Why did EQUAL develop a multi-adjustable clipless pedal?
Discover how EQUAL approaches pedal design, the challenges we see in today's market, and the engineering philosophy behind its development,
all brought together in our "Concept & Data" pages.
Currently available in Japanese only. If you're interested in this product, we invite you to explore it.
For more detailed information about the product, including instruction manuals, Concept and Data, etc., please see the following
Multi-Adjustable ROAD Pedals Documents
The information is available on the webpage below, so please take a look.
Japanese
file format: PDF
last update: March 21, 2024
English
file format: PDF
最終更新日：2026年6月26日
file format: PDF
last update: March 28, 2024
Option and Spare Parts
Spacer Kit
Contents
• Stack Height Spacers (1 mm): 12 pcs
• Cant Angle Spacers (1°): 4 pcs
• Cant Angle Spacers (0.5°): 2 pcs
• 16 mm Spindle Fixing Screw (with threadlocker): 8 pcs
• 20 mm Spindle Fixing Screw (with threadlocker): 8 pcs
• 25 mm Spindle Fixing Screw (with threadlocker): 8 pcs
Japan Sales Price: JPY3,400 (excluding tax)
Product Specifications
- Fore/Aft Adjustment Range
- 0mm, +4mm, -4mm
- Float Range
- 0°, Right 2°, Left 2°
- Q-factor
- 0(52mm), +4mm(56mm), -4mm(48mm)
- Stack Height
- Approx. 13.5-22mm
- Cant Angle
- -4°-+4° (in 0.5° increments)
- Compatible Cleats
- Shimano Road Cleats (Red/Yellow/Blue)
- Reference Weight
- 330g（pair）
- Japan Sales Price
- JPY30,000 (excluding tax)
- Included items
- • ROAD Pedals (right and left): 1 set
• Stack Height Spacers (1 mm): 8 pcs
* Two of the eight spacers are pre-installed, one in each pedal.
• Cant Angle Spacers (0.5°): 2 pcs
• Cant Angle Spacers (1°): 4 pcs
• 16 mm Spindle Fixing Screw (with threadlocker): 8 pcs
• 20 mm Spindle Fixing Screw (with threadlocker): 8 pcs
Important Notice
・If you do not have sufficient bicycle maintenance knowledge, do not attempt to install this product. Please consult a specialist or professional bike shop if you are unsure about the work involved.
・If any part of the instructions is unclear, do not proceed with installation. Please contact the retailer where you purchased the product.
・We are not responsible for any injury or damage caused during use except in cases of product defects. This includes improper installation or lack of maintenance.
・The product’s design concepts and technical data are published. We recommend reviewing them before use.
・A dealer manual is available for retailers and other users with specialized knowledge of bicycles.
・The “Spindle Fixing Screws” installed at the time of shipment are for “positioning” and do not have threadlocker. After completing positioning, replace them with the included “Spindle Fixing Screw(with threadlocker)”
